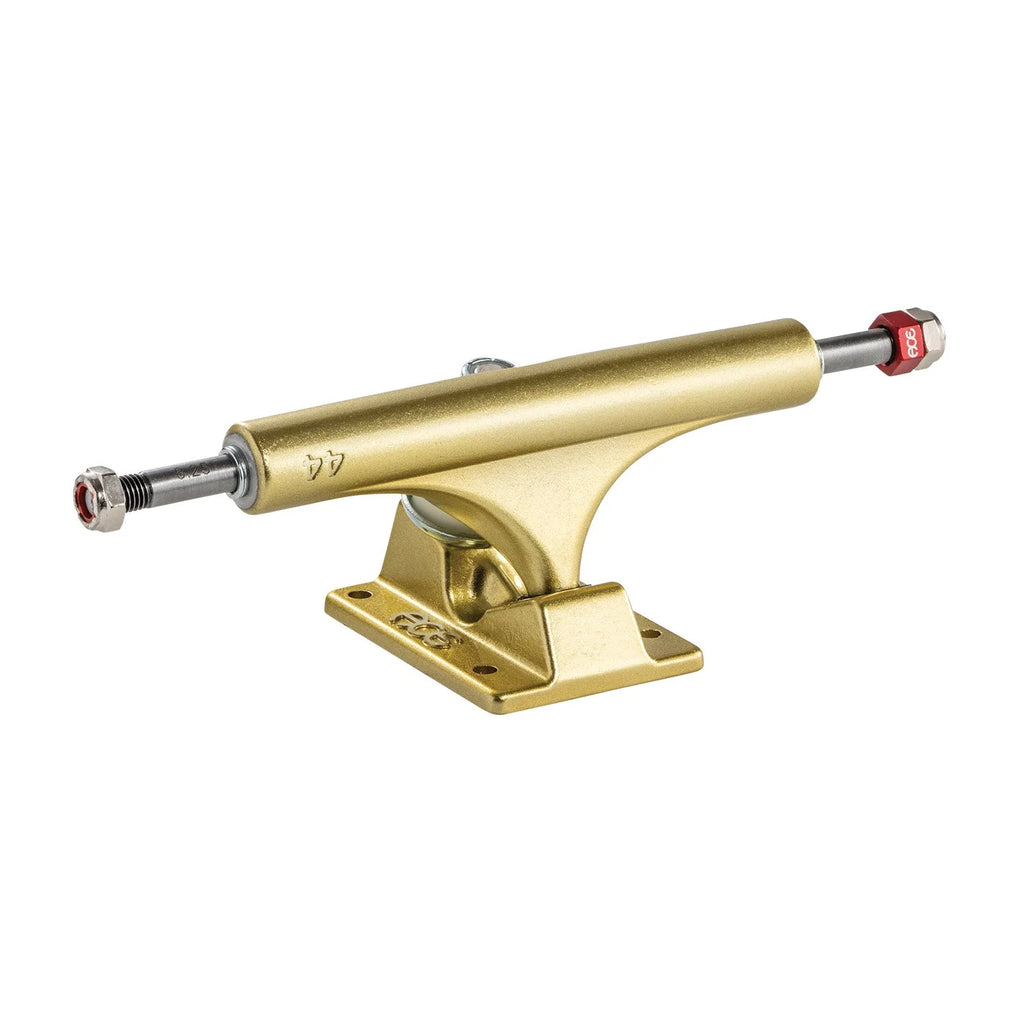

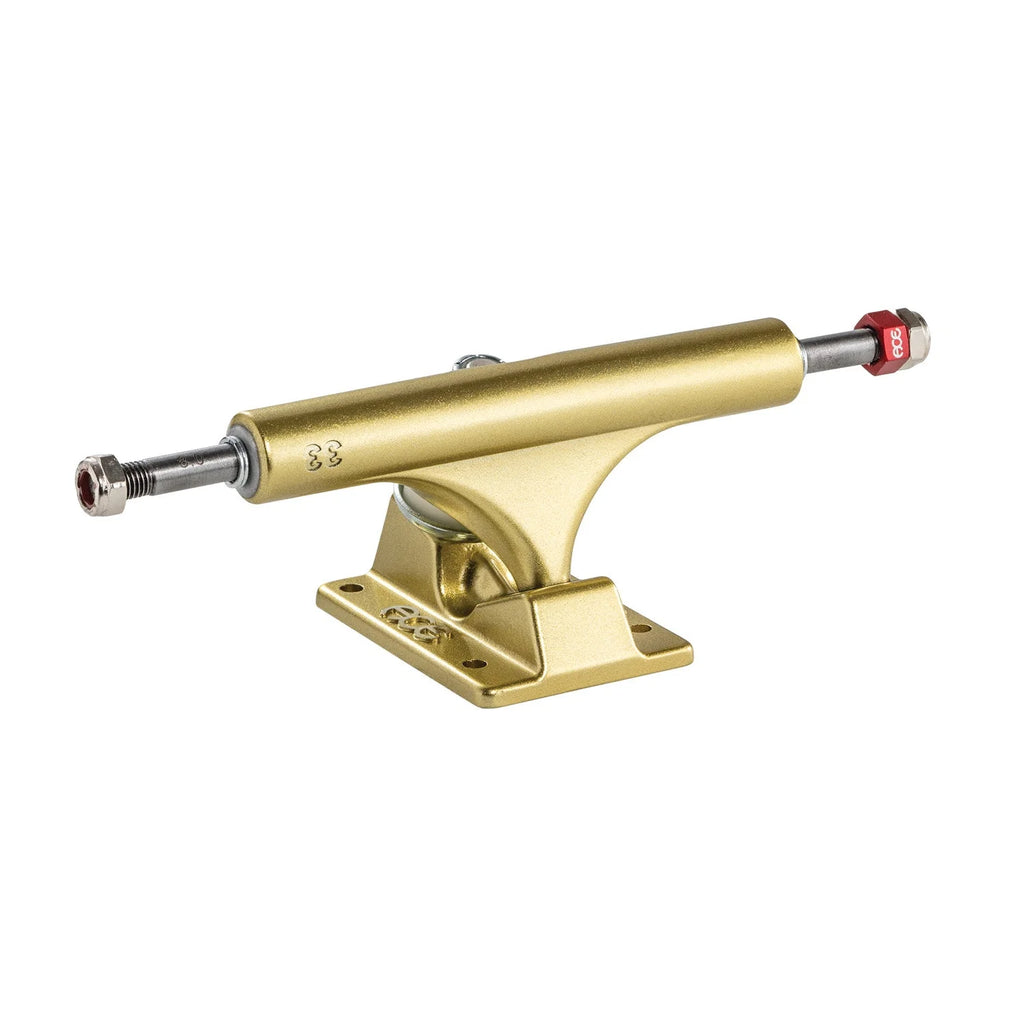

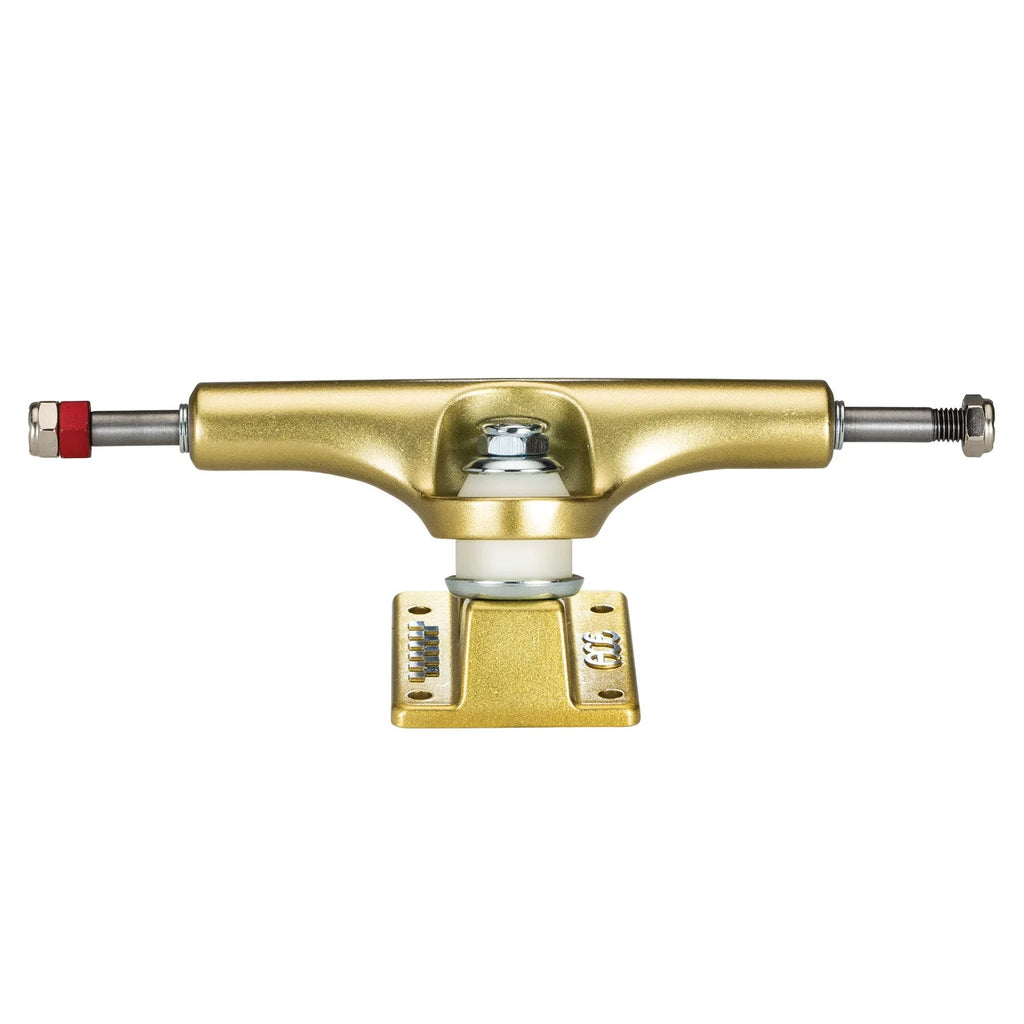

Ace Trucks AF1 Skateboard Trucks Gold (NEW)

  • Sale
  • $129.00
  • Regular price $130.00


The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.

The Ace AF1, tomorrow’s technology today!



ACE TRUCKS 22 AF1 - Polished

• Axle width: 7.75” (196.85mm)
• Hanger width: 5.2” (132mm)
• Truck height: 2.1” (53mm)
• Fits boards: 7.5” - 8.0”
• Weight: 13 oz
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.



ACE TRUCKS 33 AF1 - Polished

• Axle width: 8” (203mm)
• Hanger width: 5.4” (137mm)
• Truck height: 2.1” (53mm)
• Fits boards: 7.75” - 8.125”
• Weight: 13.5 oz
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.



ACE TRUCKS 44 AF1 - Polished

 • Axle width: 8.25” (209mm)
• Hanger width: 5.6” (143mm)
• Truck height: 2.1” (53mm)
• Fits boards: 8.125” - 8.3”
• Weight: 13.9 oz
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.



ACE TRUCKS 55 AF1 - Polished

• Axle width: 8.5” (215mm)
• Hanger width: 5.8” (149mm)
• Truck height: 2.1” (53mm)
• Fits boards: 8.3” - 8.75”
• Weight: 14 oz
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.



ACE TRUCKS 66 AF1 - Polished

• Axle width: 9” (229mm)
• Hanger width: 6.4” (163mm)
• Truck height: 2.1” (53mm)
• Fits boards: 8.75” - 9.25”
• Weight: 14.5 oz
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness
• Bottom Bushing: Bottom 14mm tall | 86a hardness
• Machine-faced hanger ends for precise bearing contact.
