Loaded Zee Bracket

  • Sale
  • Regular price $110.00


MAKE YOUR OWN MAGIC CARPET.

Create your own low-riding skateboard longboard for next-level urban adventures.

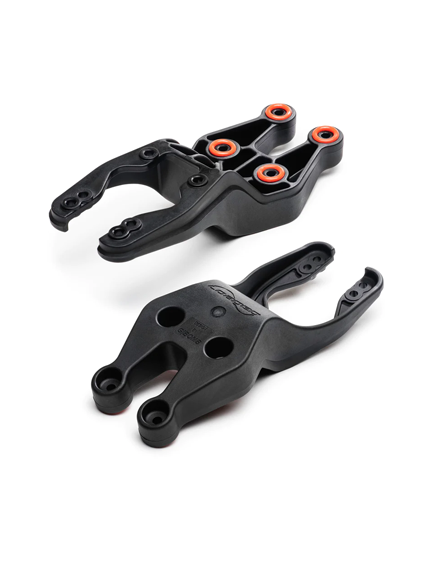

Designed exclusively for Loaded by our friends, the wizards at G/Bomb Skateboards, the Zee Brackets are a game-changing innovation that allows us to create a new generation of low-riding performance vehicles and allows you to create your low-riding masterpiece.

Contents: two (2) Zee Brackets, eight (8) O-rings

Features:

  • Lowers ride height by about 1.5″ / 3.8 cm compared to a top mounted skateboard
  • Big Wheels: accommodates wheels between 75 and 105 mm with no wheelbite
  • Super Stiff: made from fiber-reinforced automotive-grade resin
  • Vibration Damping: Eight urethane O-ring vibration dampers (four per bracket)
  • Trucks: Works with a variety of trucks between 150 and 180 mm. Reverse Kingpin (like Paris, Bear, Caliber) recommended. Works with standard street decks using existing truck mounting holes.

Recommended equipment:

  • Big Wheels (75-105mm)
  • Reverse Kingpin Trucks (150-180mm)
  • Bearings
  • Skate Hardware (two sets)
  • Griptape
  • Deck: Create your own deck out of an old street deck, a longboard deck, an old snowboard, a plank of wood, your mom’s priceless coffee table, etc.

Dimensions:

  • Length: 8.25″ / 21.0 cm
  • Width: 3.25″ / 8.26 cm
  • Height: 2.25″ / 5.72 cm
  • Weight (pair): 0.875 lb / 0.4 kg
  • Two Zee Brackets add 9.25″ / 23.5 cm to deck wheelbase
  • Designed for riders up to 250 lb / 113 kg under normal use. Riders 250-300 lb / 113-136 kg should minimize aggressive pumping.

  • Length: 8.25″ / 21.0 cm
  • Width: 3.25″ / 8.26 cm
  • Height: 2.25″ / 5.72 cm
  • Weight (pair): 0.875 lb / 0.4 kg
  • Two Zee Brackets add 9.25″ / 23.5 cm to deck wheelbase
  • Designed for riders up to 250 lb / 113 kg under normal use. Riders 250-300 lb / 113-136 kg should minimize aggressive pumping.

DIY double-drop

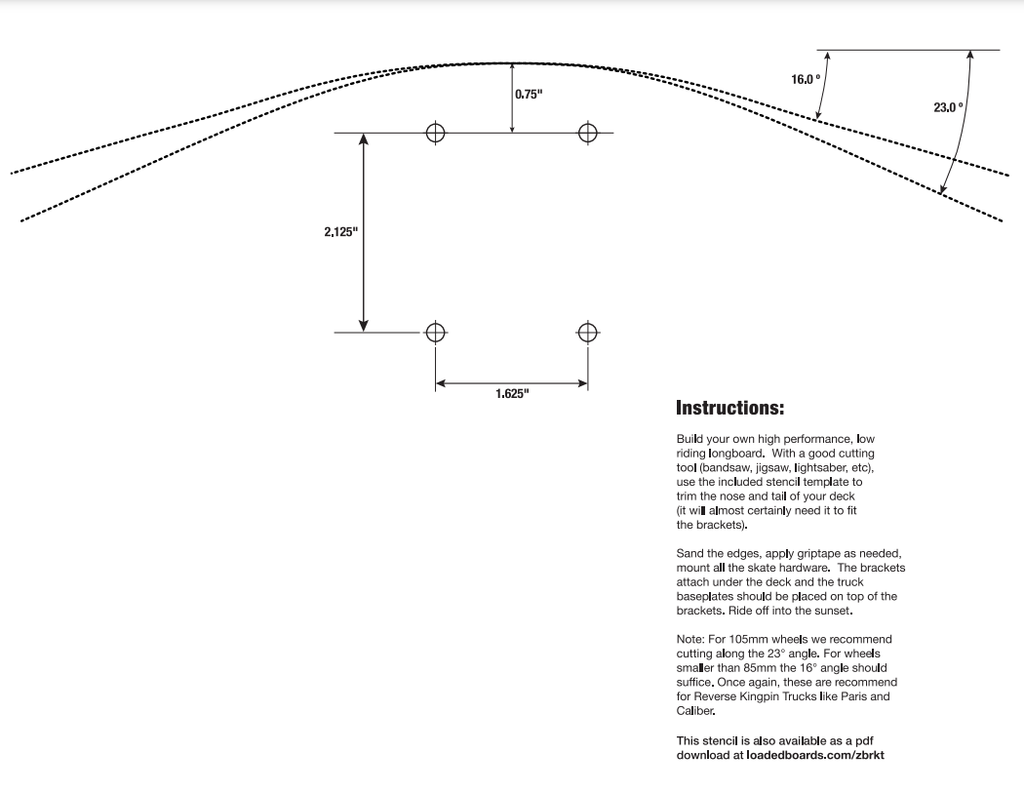

If you're mounting the Zee Bracket on your own deck, you might need to do some chopping. Luckily, we include a handy template on the lid of the box to help you get just the right fit. You can download the PDF here, as well (print at 100% scale).

The heart of the Loaded Fathom

The Zee Bracket is here to bring all your custom double-drop longboard visions to life. For a curated Loaded experience, check out the Fathom.
